End Fed Half Wave Antenna Length Calculator. 186 ft / 16.5 ft and 186 ft / 33 ft. High current, low voltage at center;
end fed 1/2 wave matching system end feed from www.w8ji.com
A standard recommendation (see qst, march 1936, p. In the graph below i have plotted what mininec predicts for the impedance of an end fed half wave antenna versus the counterpoise length. The physical length of any hf antenna is critical to achieving resonance and good performance on a particular band.
End Fed Half Wave Multiband Antennas Mike Mladejovsky Wa7Ark Prescott Hamfest June 1, 2019.
Coax losses calculator and charts; The entire antenna is #12 stranded insulated copper. A typical ferrite core transformer as above with a 7:1 turns ratio (49:1 impedance ratio) or more will be “helpful”.
As An Example, On 80 Meters, With The Radio Or Feed Point On.
32, an unorthodox antenna) is an 84' long end fed and a 17' long counterpoise (6.5' for 20m). I.e., a turns ratio of about 1:7 to 1:8. G5rv antenna (2) half wave end fed (28) marconi inverted l g7fek (3) ocf dipoles (windom) (3) zs6bkw (2) 2m (3) 4m (3) 6m (5) 10m (32) 12m (30) 15m (32) 17m (32) 20m (38) 30m (30) 40m (40).
Here Are A Few Examples:
Enter your desired frequency (mhz) of operation (i.e. Our design for an 80 m half wave end fed antenna. ~468 / freq in mhz.
186 Ft / 16.5 Ft And 186 Ft / 33 Ft.

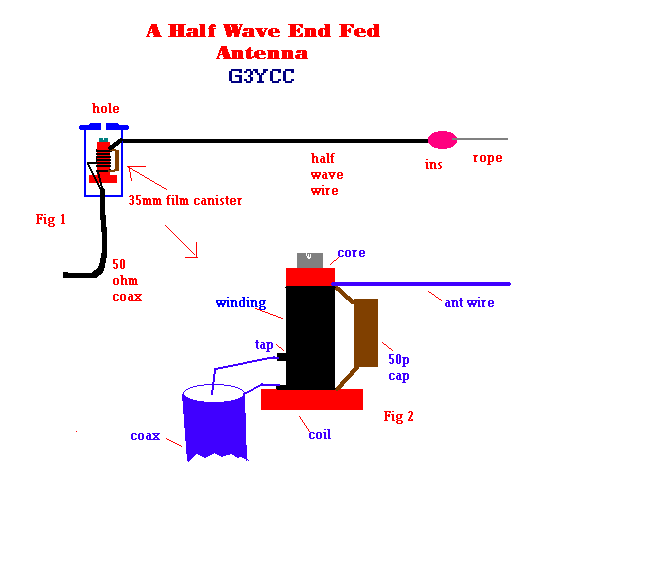

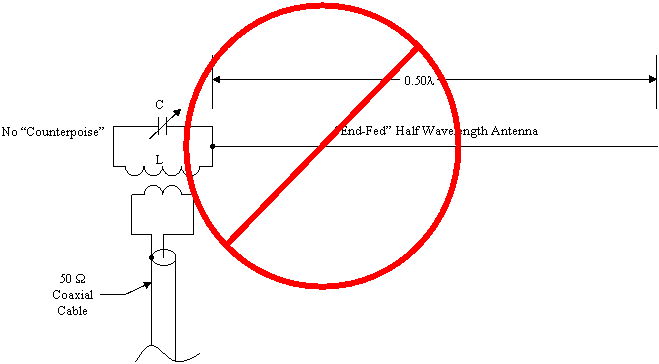

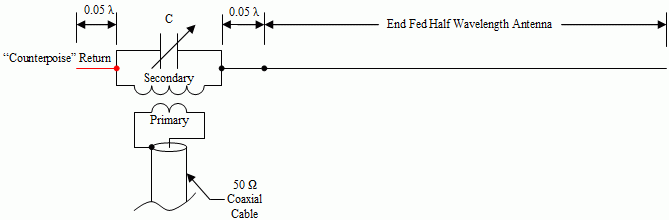

The end fed half wave antenna or the popularly known efhw antenna has been around almost ever since the inception of hf radio. •length isn’t critical, but little/no benefit for lengths > 0.05 wavelenth. This antenna wavelength calculator can be used to determine the physical length of an antenna’s electromagnetic wave in free space.
For Calculating The Length Of A Half Wave In Metres, I Use 141÷Ƒ (Mhz) For Wire Elements.
Adjust the length for minimum swr at 5.36 mhz to cover the 60m band. That’s a 50:1 impedance mismatch for a 50 ω output radio (swr of 2500/50=50:1). *alk = antenna length constant.
